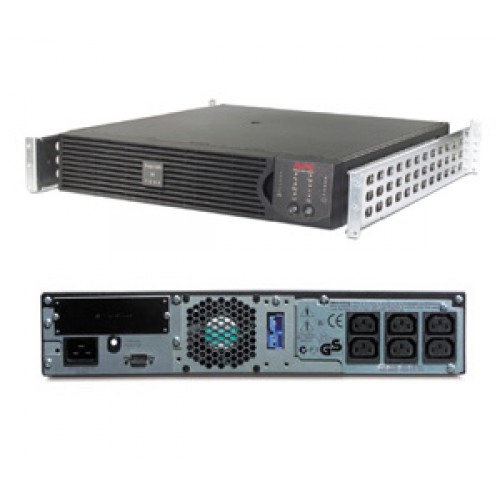

Product Description APC Smart-UPS RT is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. Featuring double conversion on-line topology, the Smart-UPS RT protects your data by supplying reliable, network-grade power. An unlimited number of matching battery packs can be added to comply with aggressive runtime demands of "always on" business-critical systems. Rack-optimized models are an ideal choice for space constrained environments. With capacity up to 10kVA in a convenient rack-mountable 6U form, users can support power hungry blade servers or heavily loaded equipment racks. Customers looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction will find them in the Smart-UPS RT.


Extended Specification

General

Device Type - UPS Form Factor - Rack-mountable Battery Enclosure Type - Plug-in module Height (Rack Units) - 2 U Width - 43.7 cm Depth - 48.8 cm Height - 8.6 cm Weight - 23 kg Enclosure Colour - Black

Power Device

UPS Technology - On-line Supported Battery Technology - Lead Acid Input Voltage - AC 230 V Input Voltage Range - AC 160 - 280 V Input Voltage Range (Adjustable) - AC 100 - 280 V Frequency Required - 50/60 Hz Input Connector(s) - 1 x power IEC 320 EN 60320 C14 Output Voltage - AC 230 V Power Provided - 1000 VA Output Waveform - Sinewave Surge Suppression - Standard Surge Response Time - 0 ns Energy Rating - 420 Joules

Battery

Type - UPS battery Technology - Lead Acid Average Run Time - 10.2 min at full load

Expansion / Connectivity

Interfaces - 1 x management - RS-232 - 25 pin D-Sub (DB-25) Expansion Slots Total (Free) - 1 ( 1 ) x SmartSlot

Miscellaneous

Cables Included - 1 x serial cable Compliant Standards - FCC Class A certified, CSA, UL 1778 Features - Emergency power off, audible alarm, Power Factor Correction (PFC) Rack mounting kit - Included

Software / System Requirements

Software Included - Drivers & Utilities

Manufacturer Warranty

Service & Support - 2 years warranty Service & Support Details - Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature - 0 °C Max Operating Temperature - 40 °C Humidity Range Operating - 0 - 95% Min Storage Temperature - -15 °C Max Storage Temperature - 45 °C
